1. Product Introduction
FY-DT-3000 is a data transmission module with features such as long distance, high data throughput, and low latency, which can be widely used in scenarios with strict requirements for real-time performance and bandwidth, such as drones, robots, industrial control, remote measurement and control, and unmanned systems. It can be directly connected to most mobile phones and computers via the Type-C interface, greatly enhancing convenience.
2. Product Specifications
1. Basic Specifications
| Specification | Parameter |
|---|---|
| Size | 34x25x10mm (nylon housing) |
| Weight | 10g |
| Input Voltage | 5~13V（DC） |
| Power Consumption | ≤2W（@5V） |
| Connector | Type-C USB Connector + 4P GH1.25mm Connector |
| Operating Temperature | -40~85℃ |
2. Performance Specifications
| Performance | Parameter |
|---|---|
| Communication Frequency Band | 915MHz |
| Air Speed | 2.5KB/s (downlink) - 2KB/s (uplink) |
| Refresh Rate | 19Hz |
| Transmission Power | 500mW-27dB |
| Communication Distance | ≤3KM |
| Communication delay | ≤200ms |
| Working Mode | Pass-through Mode |
| Interface communication mode | Serial Port: 57600bps |
| USB Virtual Serial Port: 57600bps or 115200bps | |
| Wireless communication form | **Supports multiple 1-to-1 connections simultaneously (networking is not supported for now) ** |
3. Instructions for Use
1. Status Indicator Definition

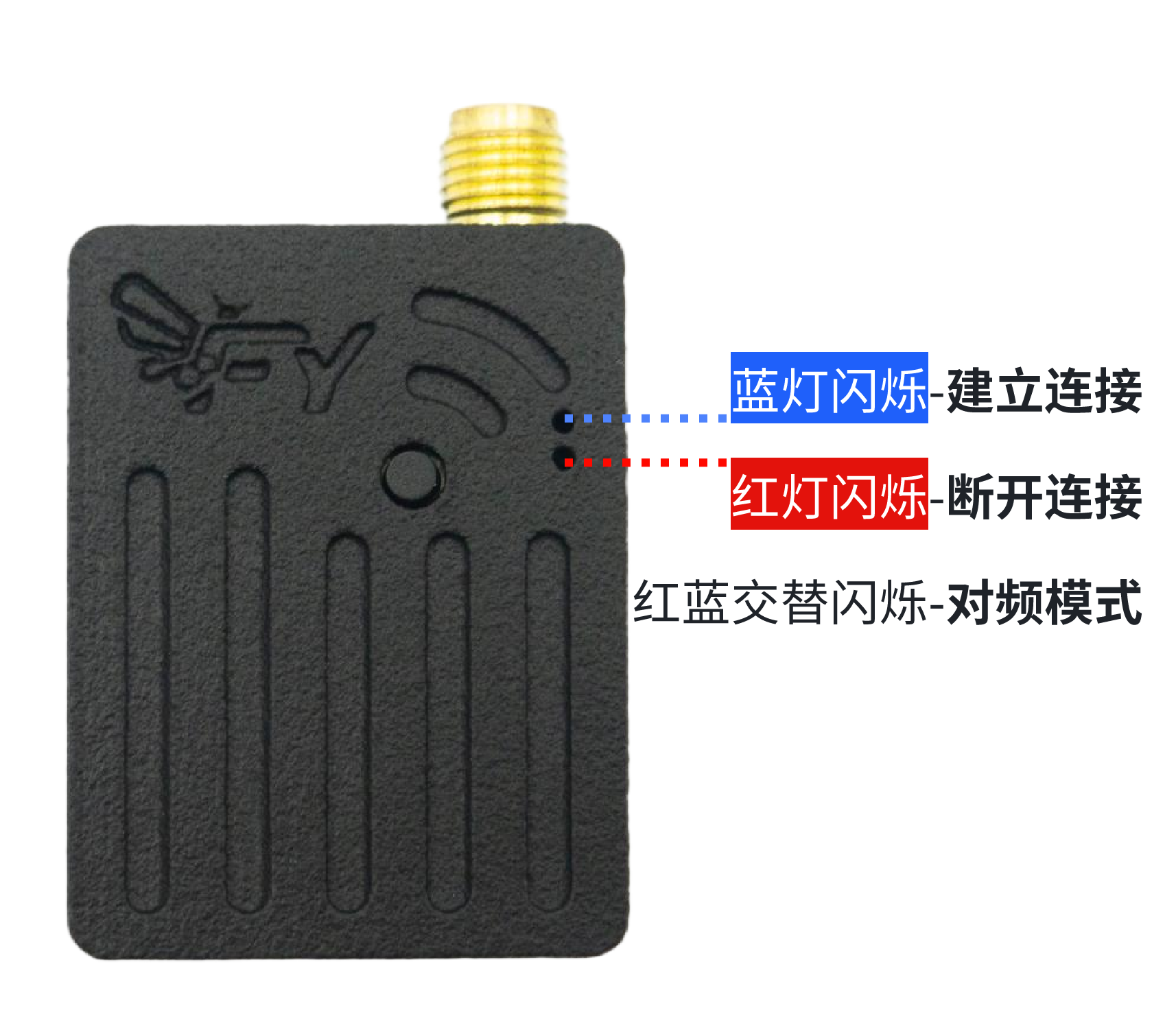

| Indicator Light | Status |
|---|---|
| Red light flashing | Data transmission disconnected |
| Blue light flashing | Data transmission establishes connection |
| Red and blue lights flash alternately | **The data transmission is in frequency pairing mode ** |
2. Frequency pairing operation

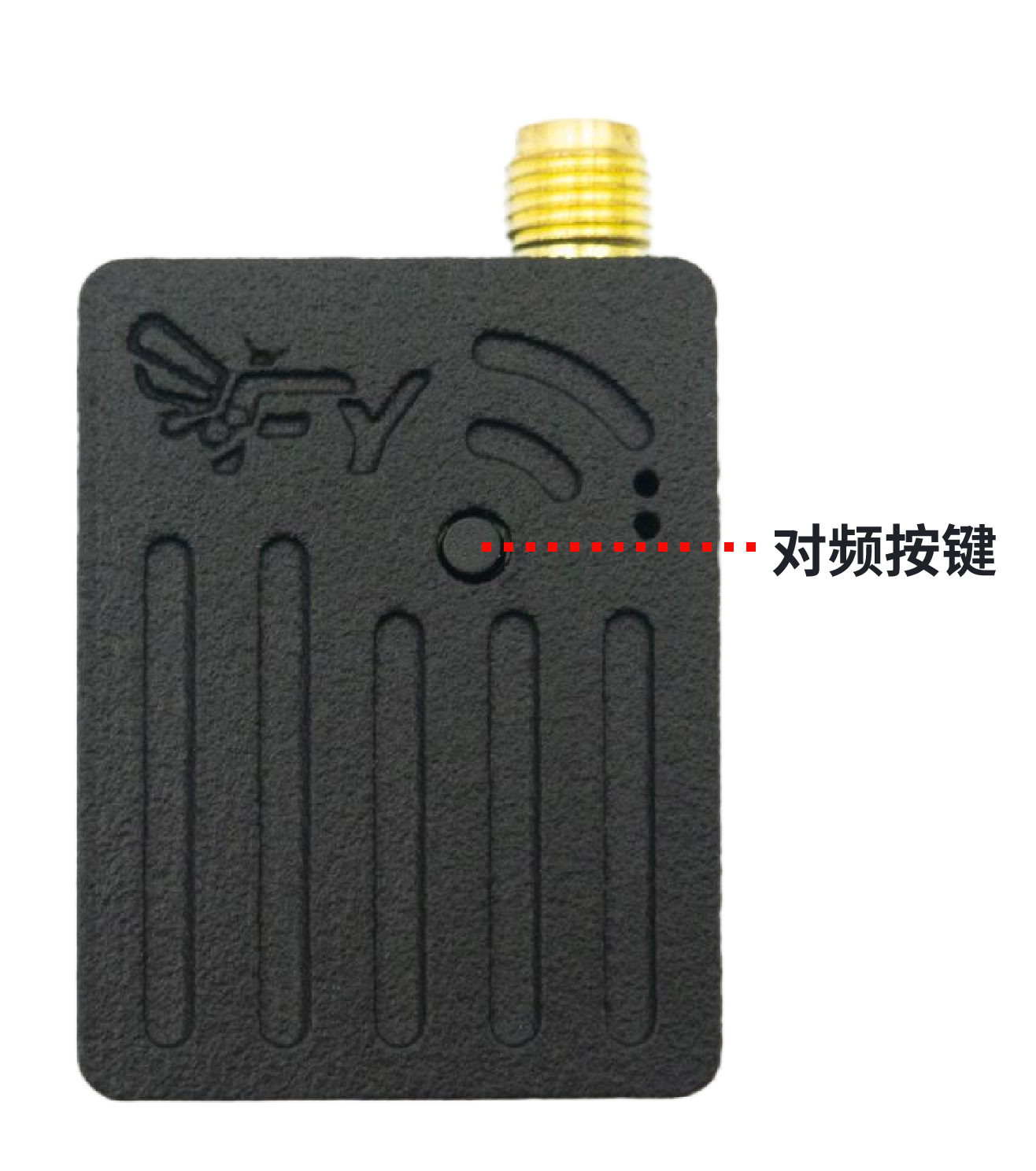

Press and hold the frequency pairing buttons of two data transmitters simultaneously for more than 3 seconds until the indicator light status changes to the red light off and the blue light on. Since networking is not supported, only two data transmitters can pair frequencies at the same time. Two paired data transmitters can communicate with each other without re-pairing frequencies after being powered on again.
3. Interface Description

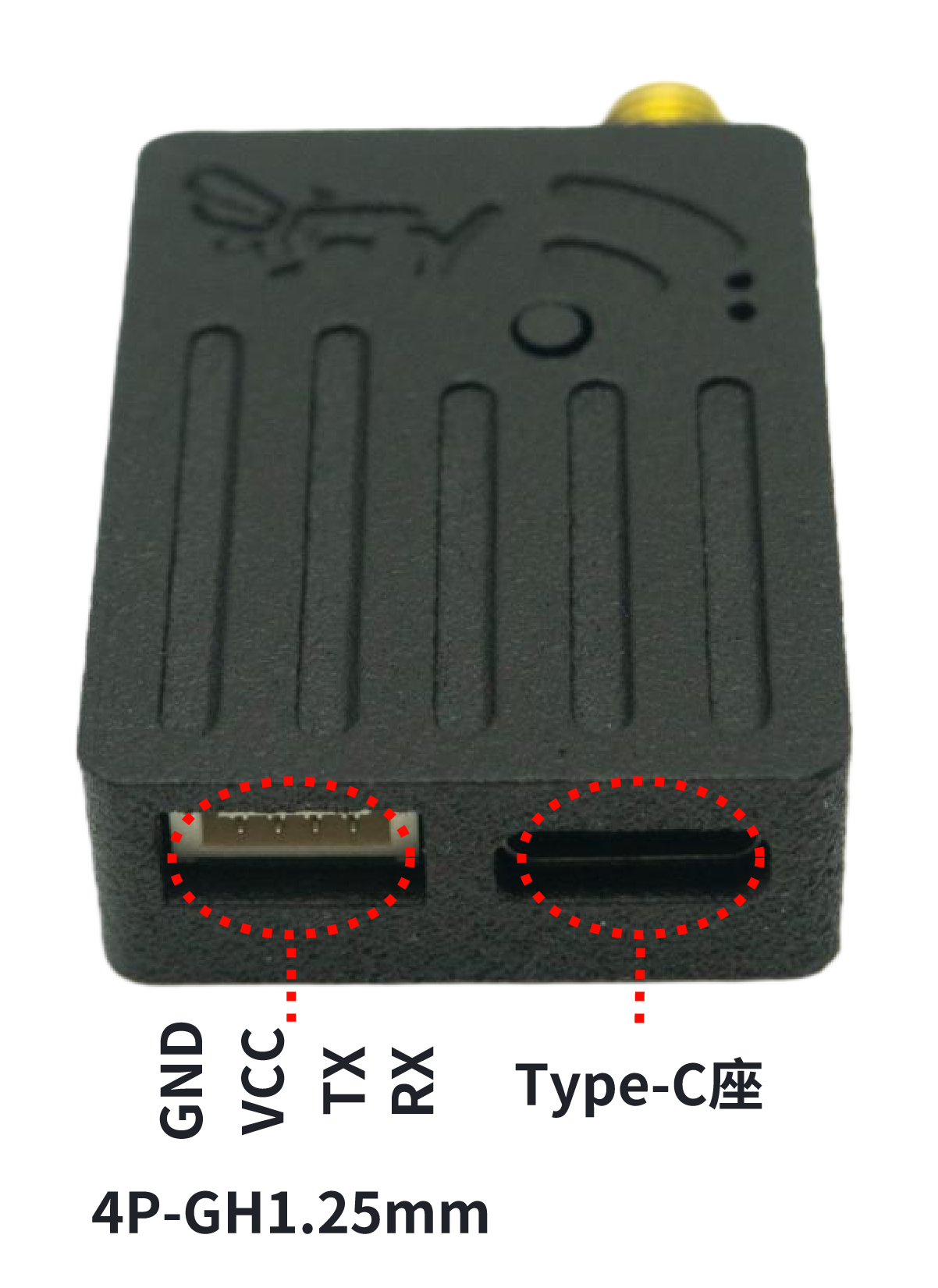

can communicate directly with the control terminal via the 4P socket, or communicate with computer and mobile phone terminals via USB.
GND: Ground Wire
VCC: Power Line
TX: Serial Port Transmitter
RX: Serial Port Receiver
4. Shipping Accessories List
| **Shipped Goods ** | Quantity |
|---|---|
| FY-DT-3000 Module | 1 |
| High-power antenna | 1 |
| Type-C male to Type-C male cable | 1 |
| 4P-GH1.25mm-10cm Co-directional Wire | 1 |
5. Precautions
The product is strictly prohibited from being used in any local war. If the purchaser privately uses it in war and all liabilities arising therefrom shall have nothing to do with the supplier.
If the product is damaged due to non-quality issues, the supplier will not provide warranty.
When receiving the product, the purchaser should conduct an unpacking test as soon as possible according to the instructions, ensure that there are no issues before installing and using it, and avoid scratching the module, which may result in the inability to return or exchange it.
When problems occur during use, the problem site should be photographed and recorded as much as possible, and the supplier should be promptly informed for handling.
For the two data transmitters in interconnected communication, their antennas need to be matched; one cannot be a T-type antenna while the other is a rubber rod antenna, otherwise the communication distance will be significantly reduced.
